Garage Door Safety Sensors: Troubleshooting Common Alignment Issues

Why Your Garage Door Safety Sensors Matter

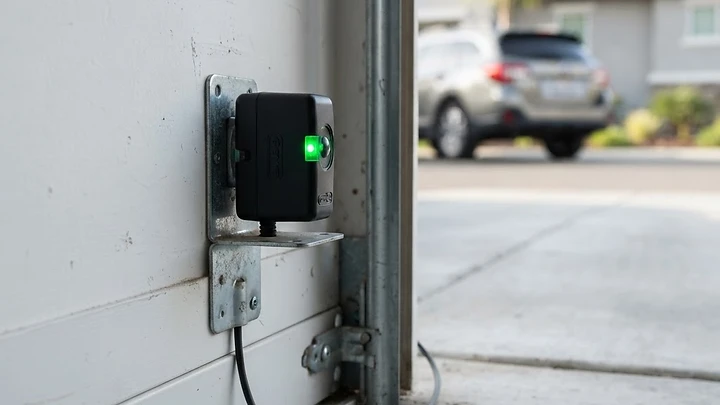

For most homeowners in the Sacramento area, the garage door is the primary entry point to the home. Beyond convenience, your garage door system is equipped with critical safety features designed to protect your family, pets, and property. The most important of these are the photoelectric safety sensors located at the base of your door frame. If these sensors become misaligned, blocked, or damaged, your door may fail to close properly, or worse, become a safety hazard.

Since 1993, all automatic garage doors have been required by law to include these reversing sensors. When functioning correctly, they emit an invisible infrared beam across the opening. If an object, child, or pet breaks this beam while the door is closing, the motor is signaled to stop and reverse, preventing potential injury or damage. Understanding how to maintain these components is a vital part of owning a home in neighborhoods like Folsom, Elk Grove, and Roseville.

Signs Your Sensors Need Attention

How do you know if your safety sensors are the culprit behind a malfunctioning door? The most common indicator is the 'reversing door' syndrome. If your door begins to descend but immediately stops and reverses back to the open position, and the lights on your motor unit flash repeatedly, it is highly likely your sensors are communicating an obstruction or a loss of signal.

Other signs include:

• The garage door refuses to close unless you hold down the wall-mounted button.
• One or both sensor lights are flickering or completely dark.
• The door works perfectly during the day but struggles in direct sunlight (this can sometimes interfere with the infrared beam).
• Visible corrosion or debris on the lenses due to Sacramento's seasonal climate changes.

How to Realign Your Safety Sensors

In many cases, a simple bump from a lawnmower or a stray broom is enough to knock a sensor out of alignment. Fortunately, this is often a DIY fix. First, ensure the area around your sensors is clear of any storage items or garden tools. Next, look at the LED lights on the sensors themselves. If one is off or blinking, it means the connection is broken.

Loosen the wing nut on the bracket holding the sensor. Slowly adjust the angle of the sensor until the indicator light stays on solidly. Once both lights are glowing steadily, tighten the wing nut carefully. Test the door by placing an object (like a cardboard box) in the path of the beam—if the door reverses, you have successfully restored the safety system.

When to Call a Professional

Sometimes, the issue isn't just alignment; it is internal wiring. Over time, the low-voltage wires running from the motor to the sensors can fray, get chewed by rodents, or corrode from damp weather. If you have attempted to align the sensors and the lights still refuse to turn on, or if the door continues to behave erratically, you may have a deeper electrical issue.

As a licensed (CSLB #1161347) and insured local operator, SpringFix Garage Doors provides expert diagnostics for all brands of openers. We serve the entire 40-mile radius around Sacramento, including Citrus Heights, Rancho Cordova, and West Sacramento. Don't let a faulty sensor compromise your home security. If you need professional assistance, give us a call at 916-404-1066 for a prompt assessment.

Frequently Asked Questions

Can I bypass my garage door safety sensors?

No. It is never safe to bypass or disconnect your safety sensors. They are a crucial safety mechanism mandated by law to prevent serious injuries. If your door won't close, you should fix the alignment rather than disabling the system.

Why do my sensors work sometimes and not others?

If your sensors are inconsistent, check for loose wiring or obstructions that might be shifting. Also, if direct, bright sunlight is hitting the receiving sensor, it can overwhelm the infrared beam, causing the door to treat the light as an obstruction.

Can I replace just one sensor if it breaks?

While some manufacturers sell individual sensors, it is often recommended to replace them as a pair to ensure they are properly matched and calibrated for your specific opener model.

Conclusion

Keeping your safety sensors clean and aligned is a simple way to maintain the longevity of your garage door system. By performing quick visual checks and ensuring the path remains clear, you can keep your home safe and functional throughout the year. If you encounter persistent issues that simple adjustments cannot fix, remember that SpringFix Garage Doors is here to help our Sacramento neighbors with reliable, expert repairs. Reach out to our team at 916-404-1066 today to schedule your service.
